W1534H AHD turn wi-fi Video transmission

一、Application scenarios：

The W1534H AHD WIFI image transmission module is widely used in traditional 2.4G analog camera video converted to network, remote control sports cameras, traditional analog TV WiFi, WiFi visual reversing, visual industrial endoscope, and wireless medical inspection fields.

Endoscope/Industrial endoscopes/Visual fish finder

二、Module features：

Support IOS/ANDROID APP

Support 1080P 25 frame resolution

Support transparent serial port transmission, mobile phone control device

Low latency≤ 200mS

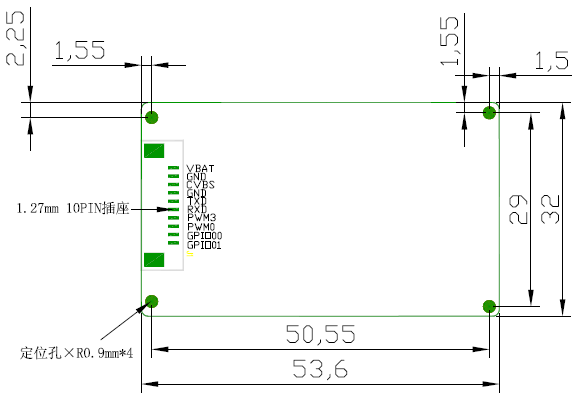

Small size: 54mmx32mmx7mm

Communication distance≥ 50m (open area)

Support AHD analog high-definition image signal input

三、Introduction

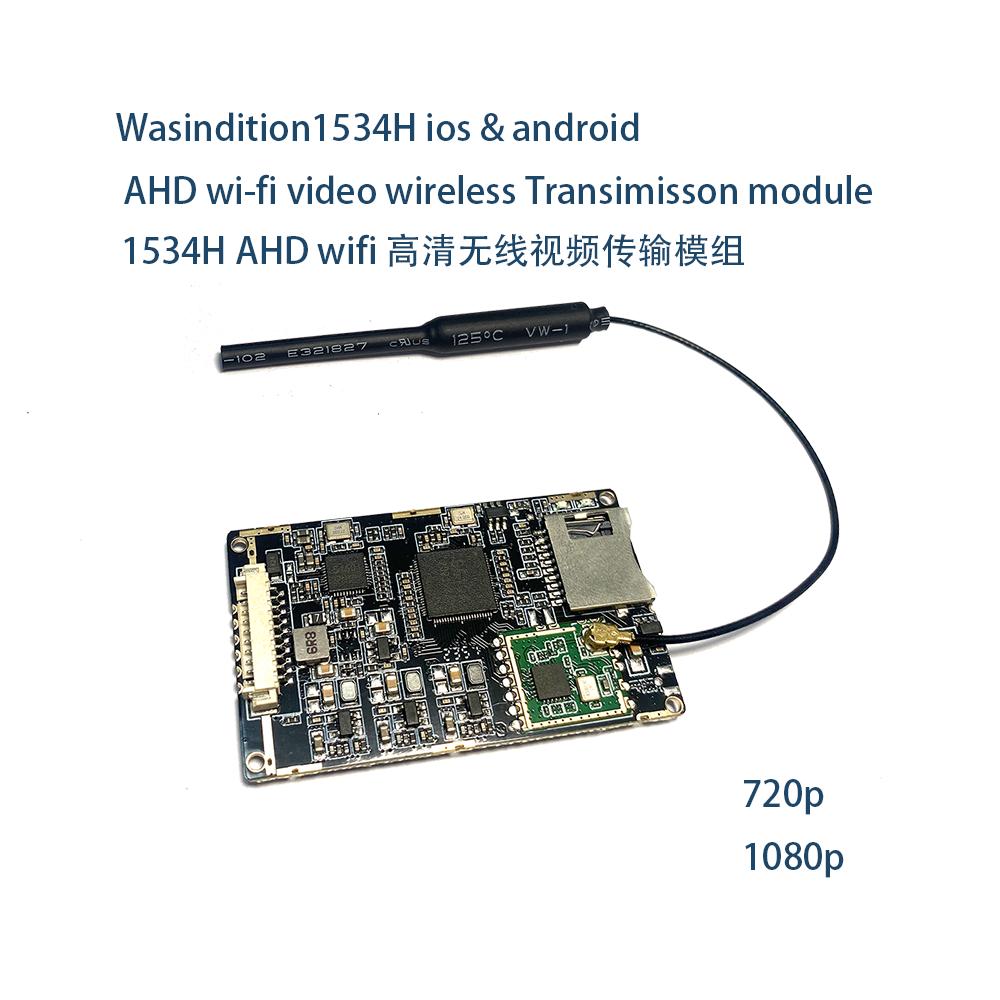

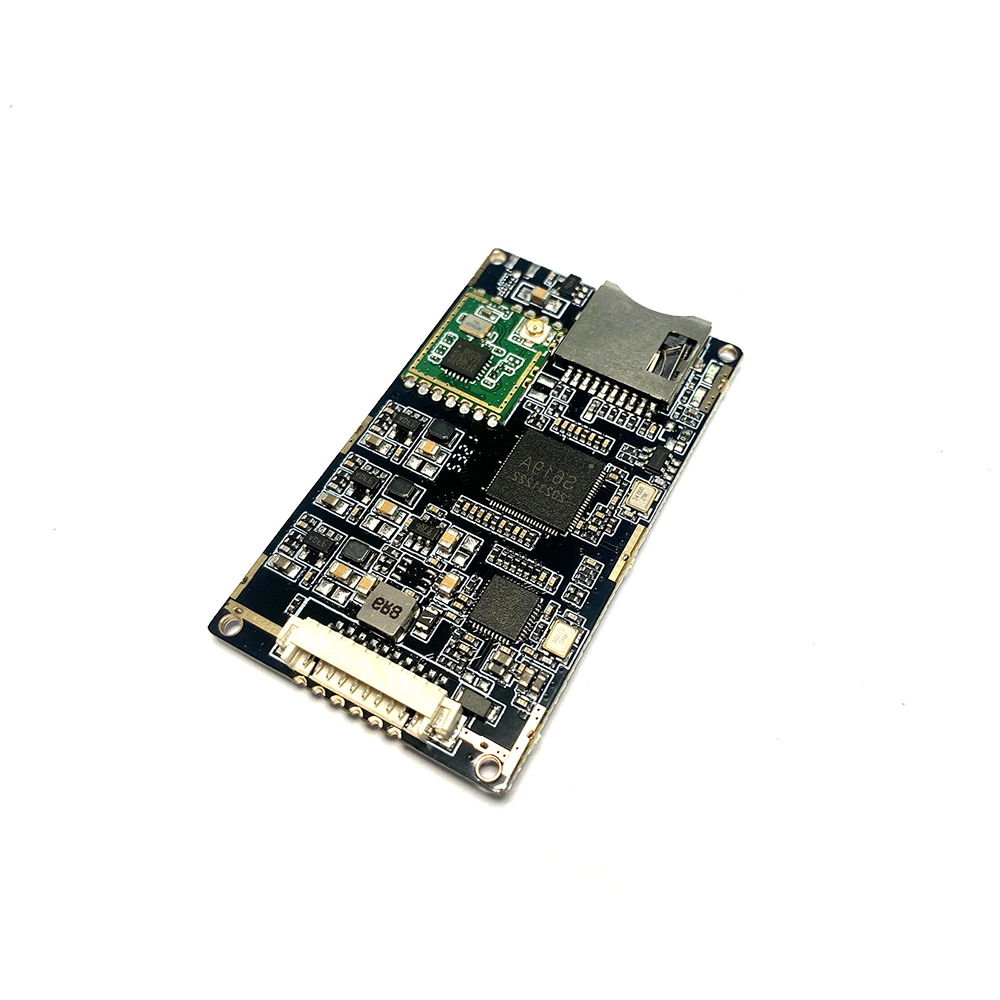

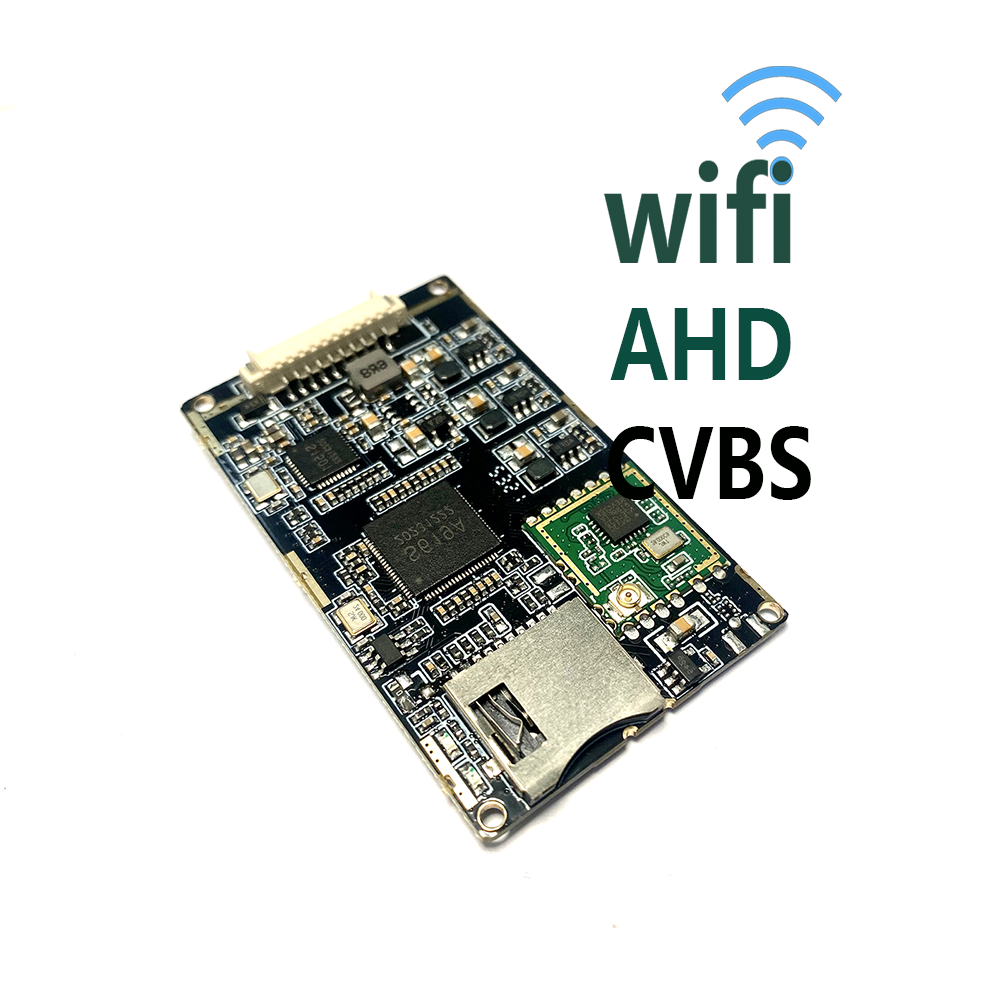

W1534H-AHD image wireless transmission module: is a WIFI video wireless transmission module based on the global open 2.4G ISM frequency band launched by Wasinditon.

Standard AHD signal input, support 1080P resolution, through processing and sent to the mobile client through WIFI display, support IOS or Android system mobile phones and tablets.

It adopts the mature wireless standard 802.11B/G/N, which has strong anti-interference, large bandwidth and strong device compatibility. With IOS or Android platform client software, you can send and receive control commands to the module on the mobile device. For rich control interfaces: UART, PWM, GPIO and other interfaces, which can communicate with their external devices in a variety of ways. The module's small size makes it easy to implant into the main application system.

四、Electrical parameters

Wasindition specializes in research and innovation for applications in the Internet of Things market, focusing on smart logistics, intelligent transportation, smart security, smart energy, smart healthcare, smart buildings, smart manufacturing, smart home, smart retail, smart agriculture, and smart buildings. We have developed powerful and customizable 2.4GHz single-frequency and 2.4/5GHz dual-frequency UART serial WiFi modules, USB interface UVC WiFi modules, CVBS wireless video transmission WiFi modules, AHD high-definition video transmission WiFi modules, HDMI wireless video transmission modules, and driver-free high-definition video capture cards. These products are widely used for transmitting high-definition video signals to mobile phones, particularly suitable for medical endoscopes, industrial cameras, and more. All our modules are independently designed, developed, and manufactured, with customization services available.
