Wi-fi point-to-point transmission, no need for external network
Video signal: AHD 720p/1080p
Distance:50-80M (open area)
DC:+3.6V -5V
SIZE:54mm*32mm*7mm (size without ANT)
The small size is suitable for the second development and receives customized APP

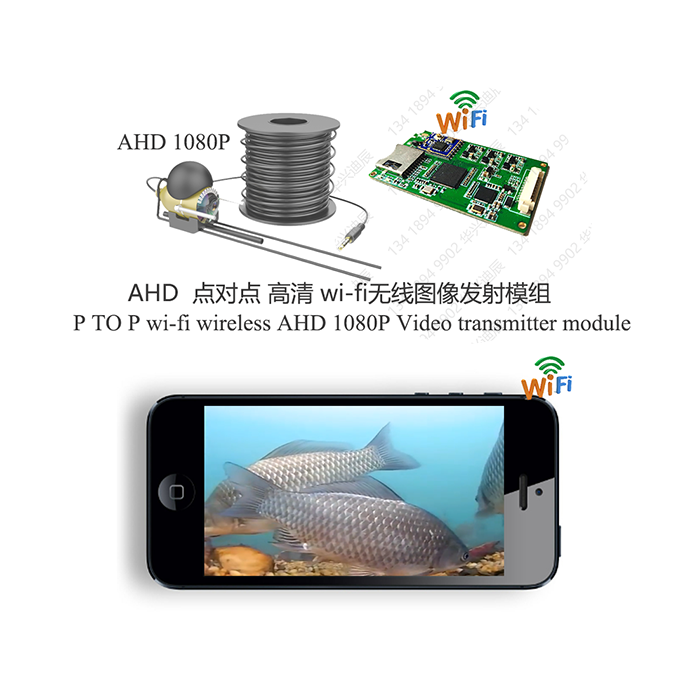

The 1534H AHD WIFI module produced by www.Wasindition.com 1534H AHD AVI RCA WIFI module is a module that can convert AHD 720p/1080p video signals into wireless signals and transmit images and videos. This module allows users to receive and view videos on iPhone and Android phones, and can share them later.
一、Application scenarios：
Borescope
Industrial endoscopes
Visual fish finder
二、Module features：
Support IOS/ANDROID/PC APP and software
Support 1080P 25 frame resolution
Support transparent serial port transmission, mobile phone control device
Low latency≤ 200mS

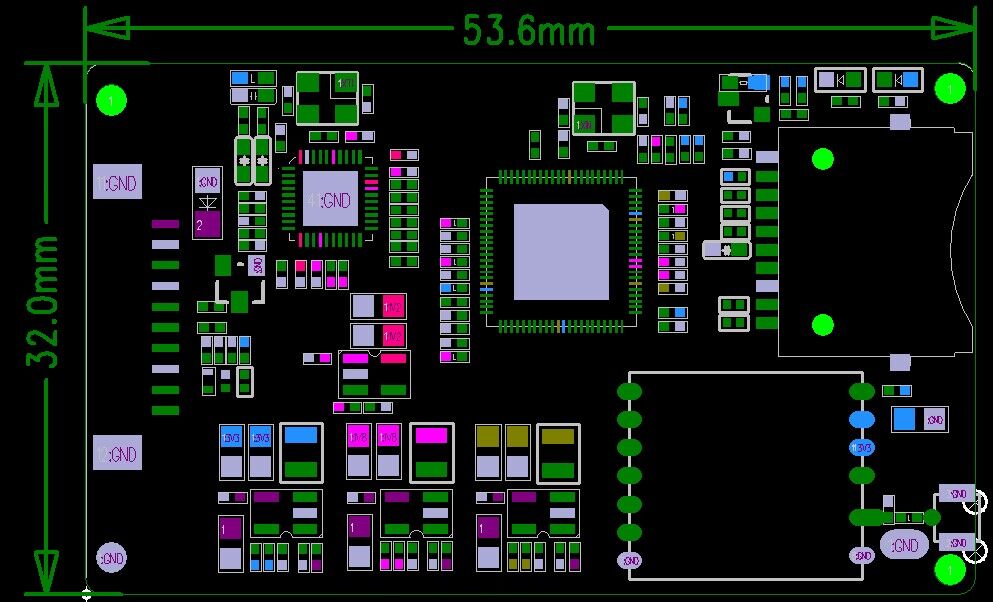

Small size: 54mmx32mmx7mm
Communication distance≥ 50m (open area)
Support AHD analog high-definition image signal input
三、Introduction
AHD1534H image wireless transmission module: is a WIFI video wireless transmission module based on the global open 2.4G ISM frequency band launched by Shenzhen Golden Sunflower Technology Co., Ltd.
Standard AHD signal input, support 1080P resolution, through processing and sent to the mobile client through WIFI display, support IOS or Android system mobile phones and tablets.
It adopts the mature wireless standard 802.11B/G/N, which has strong anti-interference, large bandwidth and strong device compatibility. With IOS or Android platform client software, you can send and receive control commands to the module on the mobile device. For rich control interfaces: UART, PWM, GPIO and other interfaces, which can communicate with their external devices in a variety of ways. The module's small size makes it easy to implant into the main application system.
四、Electrical parameters
1534H_AHD video wireless transmission module: electrical characteristics | ||
1 | Operating voltage | 3.6-5.0V |
2 | Operating current | ≤300~350mA |
3 | Power-on start time | 10 second±2 second |
1534H_AHD video wireless transmission module: Wireless performance parameters | ||
1 | Rated current | ≤350mA(Maximum power output) |
2 | Wireless communication | IEEE802.11b/g/n |
3 | Rated power | 13 dBm +-2 dBm |
4 | Communication protocol | (UART/GPI0) |
5 | Serial port protocol | IP address：192.168.11.10 |
6 | Power-on start time | ≤10S ±2S |
7 | RF port standing wave | ≤1.3 |
8 | Distance | ≤50~100m open area |
9 | RF output power | ≤13dBm (+-2dBm) |
10 | Signal input format | AHD 1080 25 frames |
11 | Image resolution | 1080P_25 frames |
12 | Delay | ≤200ms |
1534H_AHD video wireless transmission module: Other parameters | ||
1 | ANT | External antenna |
2 | Size | 54mm*32mm*7mm |
3 | Operating temperature | -10℃～+50℃ |
4 | Storage temperature | -20℃～+60℃ |

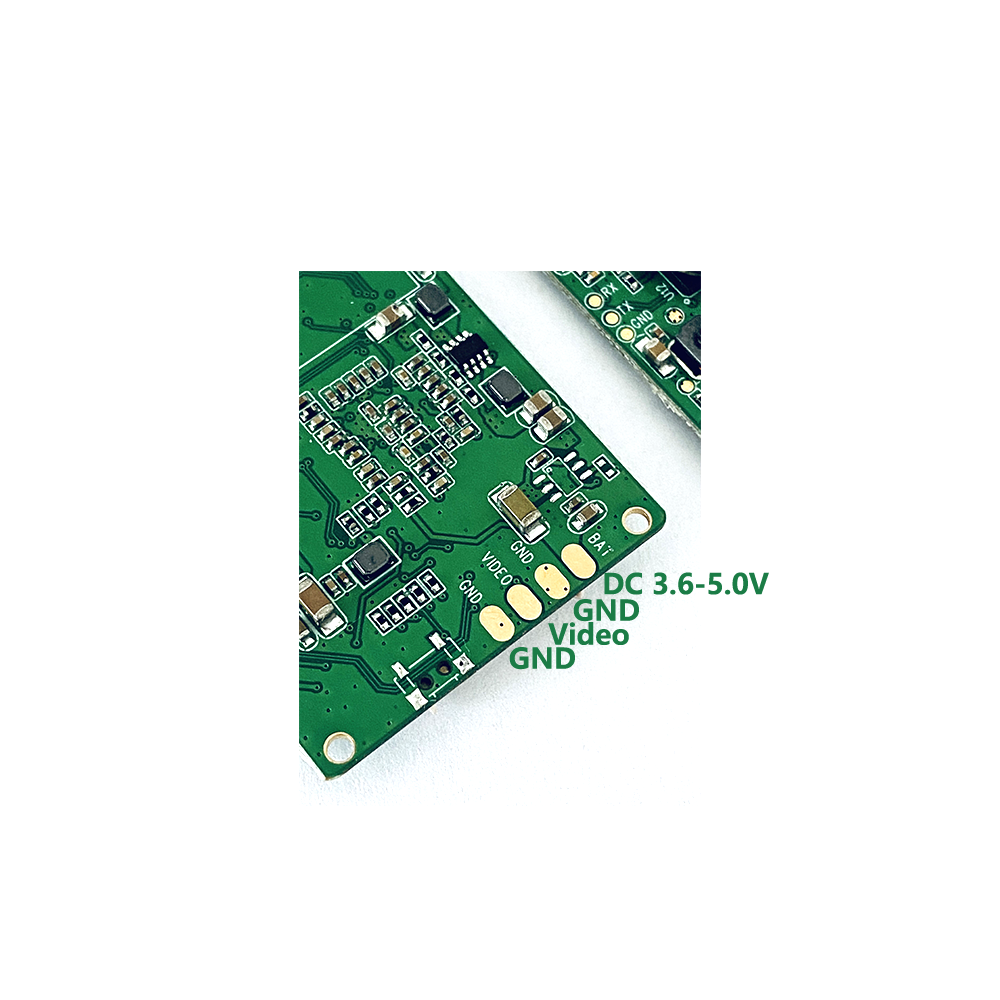

1534H_AHD video wireless transmission module: Module interface definition | ||
1 | GPIO_1 | NC |
2 | GPIO_0 | NC |
3 | PWM0 | IO port |
4 | PWM3 | IO port |
5 | UART_RX | Serial port communication reception 串口通信接收 |
6 | UART_TX | Serial communication transmission 串口通信发射 |
7 | GND | Video GND |
8 | AHD_VIDEO | AHD VIDEO IN |
9 | GND | DC_GND |
10 | VBAT | 3.6-5.5V DC |
-
