H-24 HDMI wireless sender
    Publish time 2024-03-28 15:10

HDMI wireless Extender solutions

Wireless screen generator is equivalent to wireless screen projector, HDMI wireless audio and video transmitter

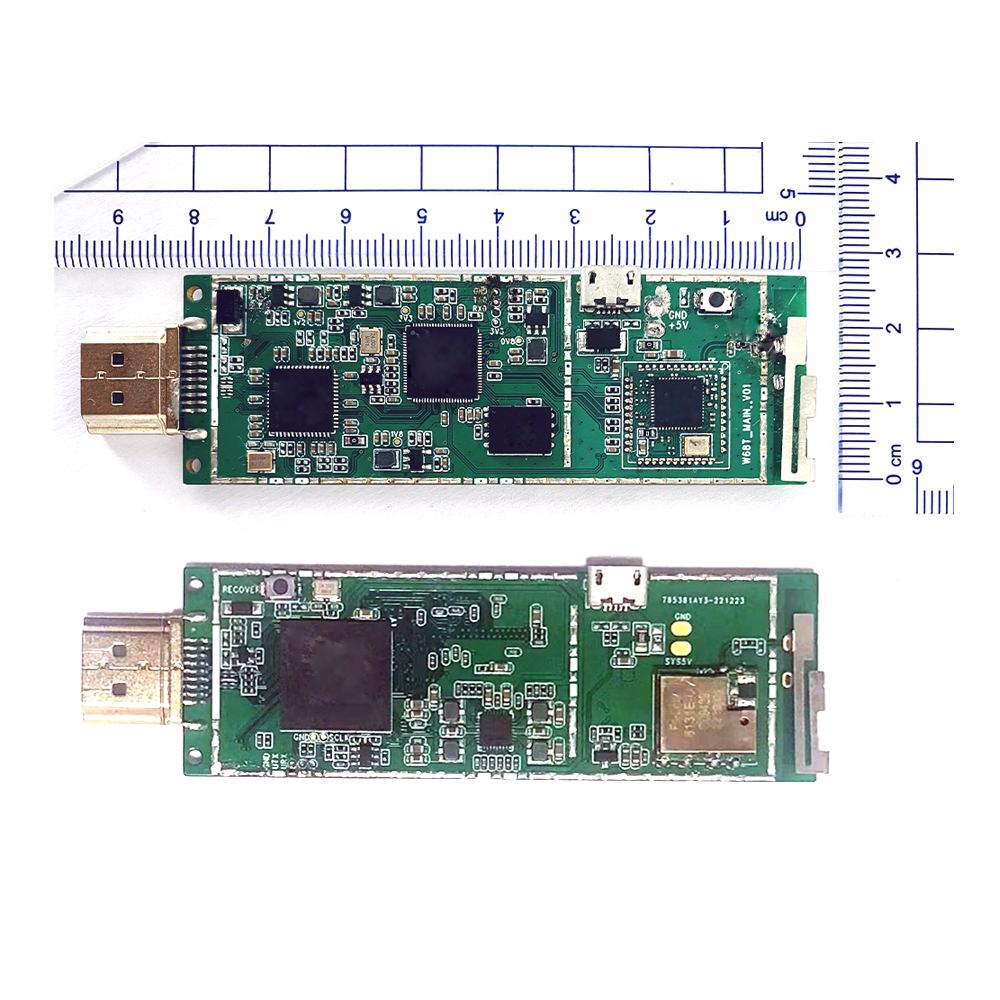

H-24 HDMI wireless sender

      The video source is H265 encoded by the HDMI interface input transmitter (encoder), and then the transmitter (encoder) sends the encoded H265 code stream to the receiving end through wifi, and the receiving end (decoder) receives the H256 code stream and decodes it and displays it through the HDMI interface output.

     What kind of resolution and frame rate are entered by the sending end (encoder), the receiving end (decoder) is decoded and displayed according to that resolution and frame rate. It involves high-quality encoding and decoding, low-latency wireless video transmission, etc.

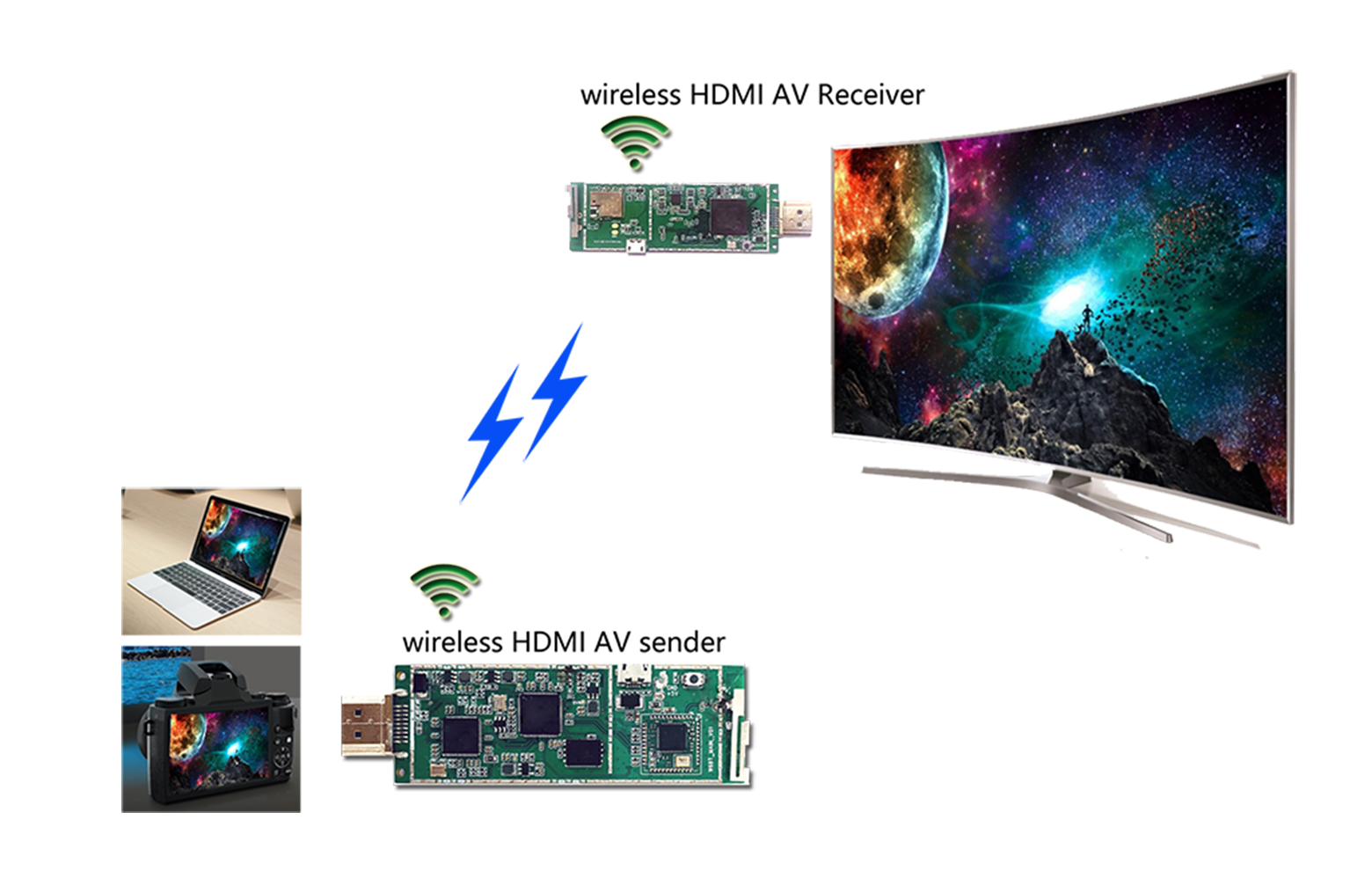

      The sending end (encoder) is the AP and the receiving end (decoder) is the STA, as shown below:

The medium version can achieve 5-meter HDMI-level uncompressed transmission. The high-end version can realize 30-meter HDMI-level uncompressed and lag-free transmission.
