AHD and CVBS via wifi to phone solutions PCBA
    Publish time 2023-01-18 14:48

Wi-fi point-to-point transmission, no need for external network

Video signal: AHD 720p/1080p

Distance:50-80M (open area)

DC:+3.6V -5V

SIZE:54mm*32mm*7mm (size without ANT)

The small size is suitable for the second development and receives customized APP

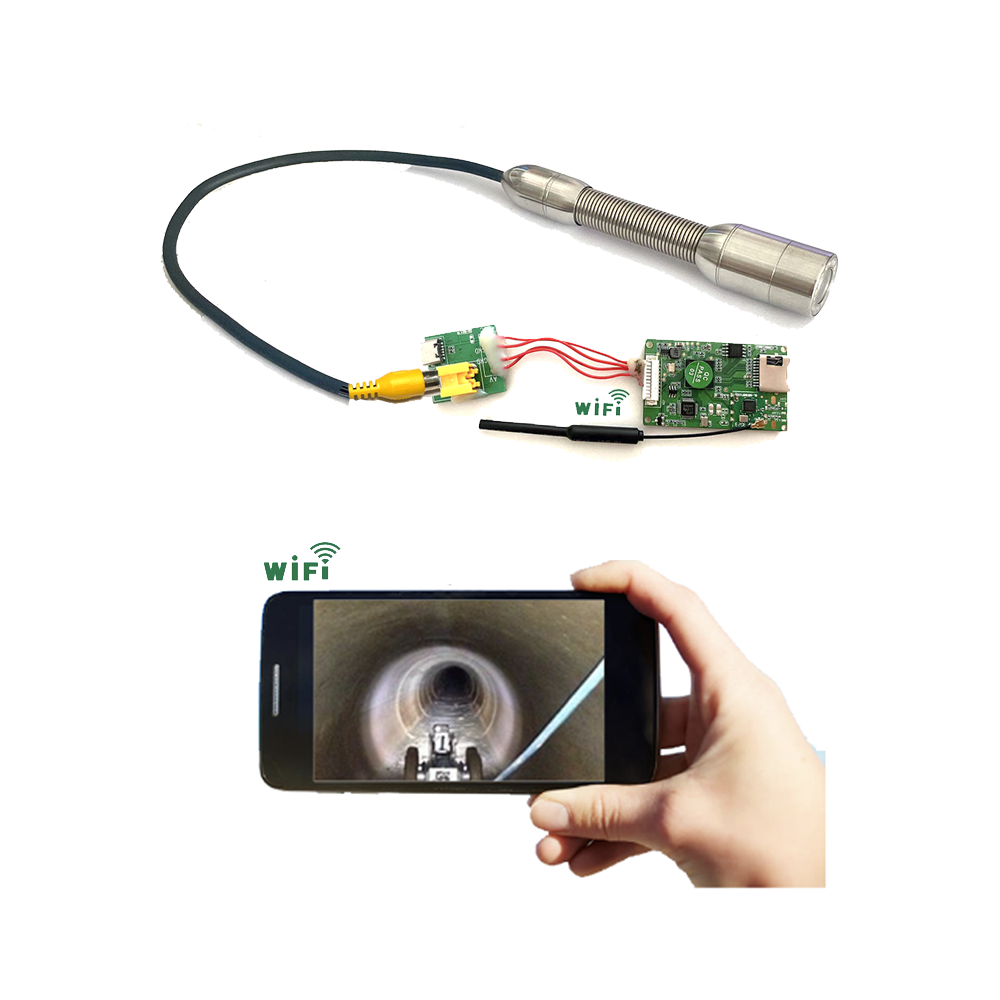

The 1534H AHD WIFI module produced by www.Wasindition.com 1534H AHD AVI RCA WIFI module is a module that can convert AHD 720p/1080p video signals into wireless signals and transmit images and videos. This module allows users to receive and view videos on iPhone and Android phones, and can share them later.


AHD and CVBS via wifi to phone solutions PCBA


一、Application scenarios：


Borescope

Industrial endoscopes

Visual fish finder

wi-fi Wireless accessories for sewer camera pipe locators


二、Module features：


Support IOS/ANDROID APP

Support CVBS/AHD

Support transparent serial port transmission, mobile phone control device

Low latency≤ 200mS

Small size: 54mmx32mmx7mm

Communication distance≥ 50m (open area)

Support AHD analog high-definition image signal input

三、Introduction


CVBS and AHD via wifi to phone PCBA board,AHD SF1534A image wireless transmission module: is a WIFI video wireless transmission module based on the global open 2.4G ISM frequency band launched by Shenzhen Golden Sunflower Technology Co., Ltd.

Standard AHD signal input, support 1080P resolution, through processing and sent to the mobile client through WIFI display, support IOS or Android system mobile phones and tablets.

It adopts the mature wireless standard 802.11B/G/N, which has strong anti-interference, large bandwidth and strong device compatibility. With IOS or Android platform client software, you can send and receive control commands to the module on the mobile device. For rich control interfaces: UART, PWM, GPIO and other interfaces, which can communicate with their external devices in a variety of ways. The module's small size makes it easy to implant into the main application system.
