UVC USB to Wifi endoscope module

UVC USB to wifi video transmission solution

UVC USB to wifi video solution customization

Wi-Fi video transmission is the first time you think of the need for core modules with video compression SOC, huge systems, complex remote servers, etc., excess budget costs. In fact, in addition to the need for compressed video transmission, there is actually a Wi-Fi routing model transmission method to realize the Wi-Fi endoscope.

When the coherence of the pictures quickly skims in front of our eyes, what we see is a moving animation. The principle of wifi routing video is also the same, in the same LAN, the Wi-Fi routing module reads the picture through the USB camera and transmits it to the mobile phone APP or computer side quickly and coherently, what we see is the form of a video.

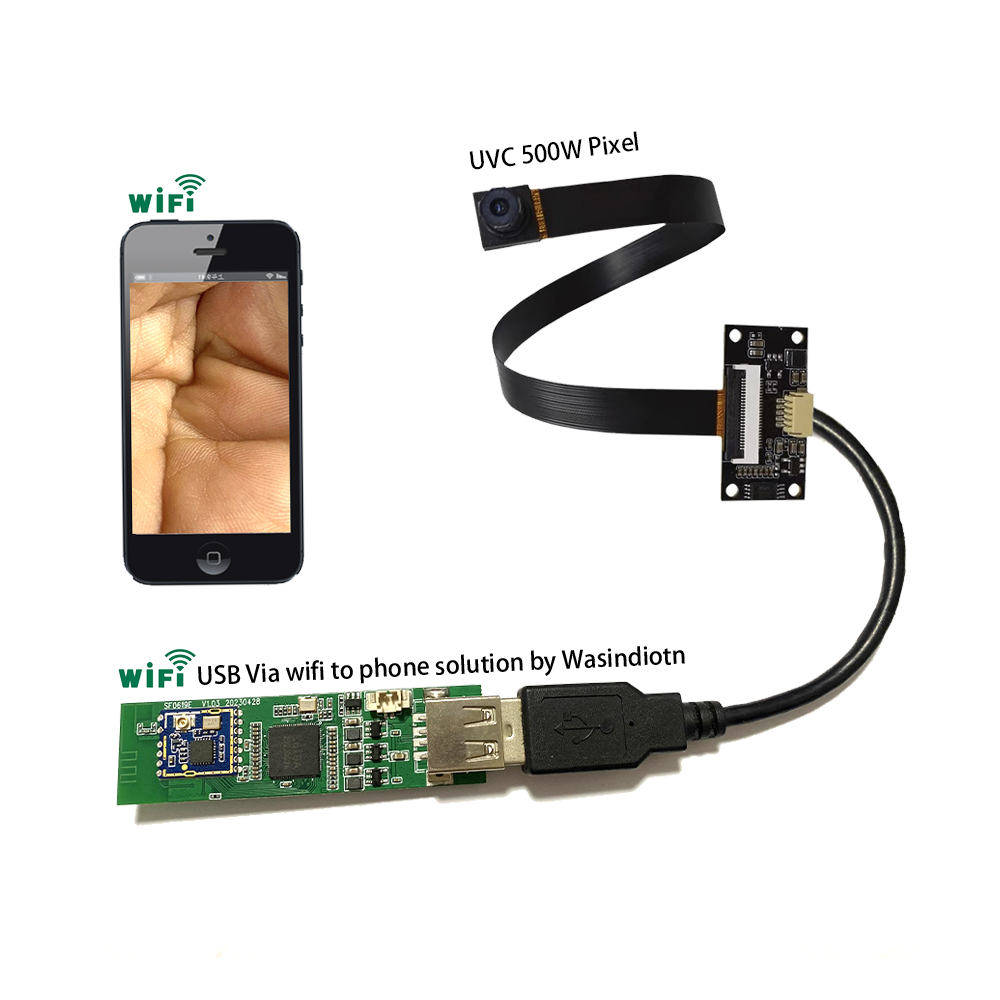

A cost-effective Wi-Fi endoscopic image transmission module.

◆ Wi-Fi transmission rate 150Mbps, support 802.11b/g/n support AP/sta mode, can connect to WiFi router, effective open transmission distance 50-100 meters;

◆ Realize USB to Wi-Fi;

◆480Mbps high-speed USB 2.0 Host interface, can be connected to USB UVC camera or endoscope video format requirements MJPG, transmission delay 300ms;

◆ Used with mobile App, support taking photos and recording videos;

◆ Ultra-small size;

◆External Wi-Fi copper tube antenna;

◆ Power supply and camera connection equipment are separated;

◆Support serial port data transparent transmission;

◆ A variety of application scenarios: USB to Wi-Fi endoscope, industrial USB camera to Wi-Fi, auto repair, pipeline maintenance, Wi-Fi image transmission, wifi video transmission, USB to WiFi speech production instrument, high shot instrument, auto repair, beauty, etc.;
