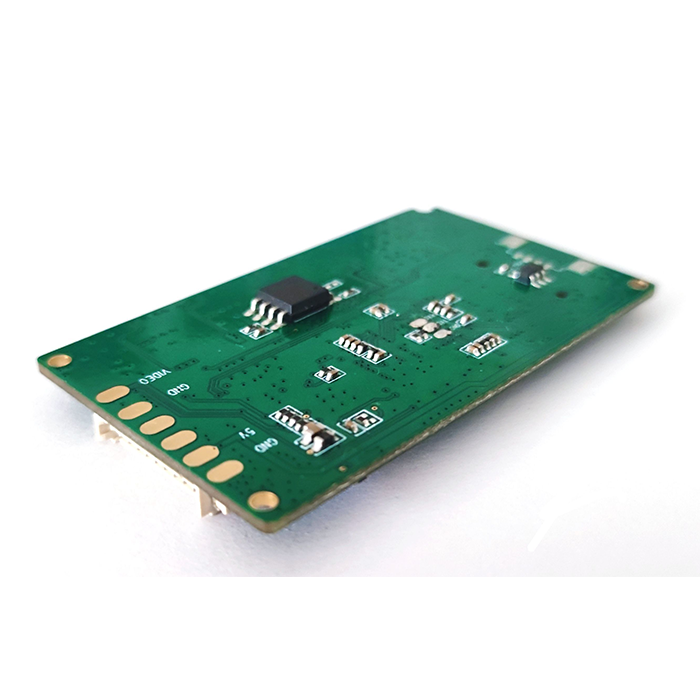

SF1534A AHD & CVBS to WIFI wireless video module

一、Application scenarios：

Borescope

Industrial endoscopes

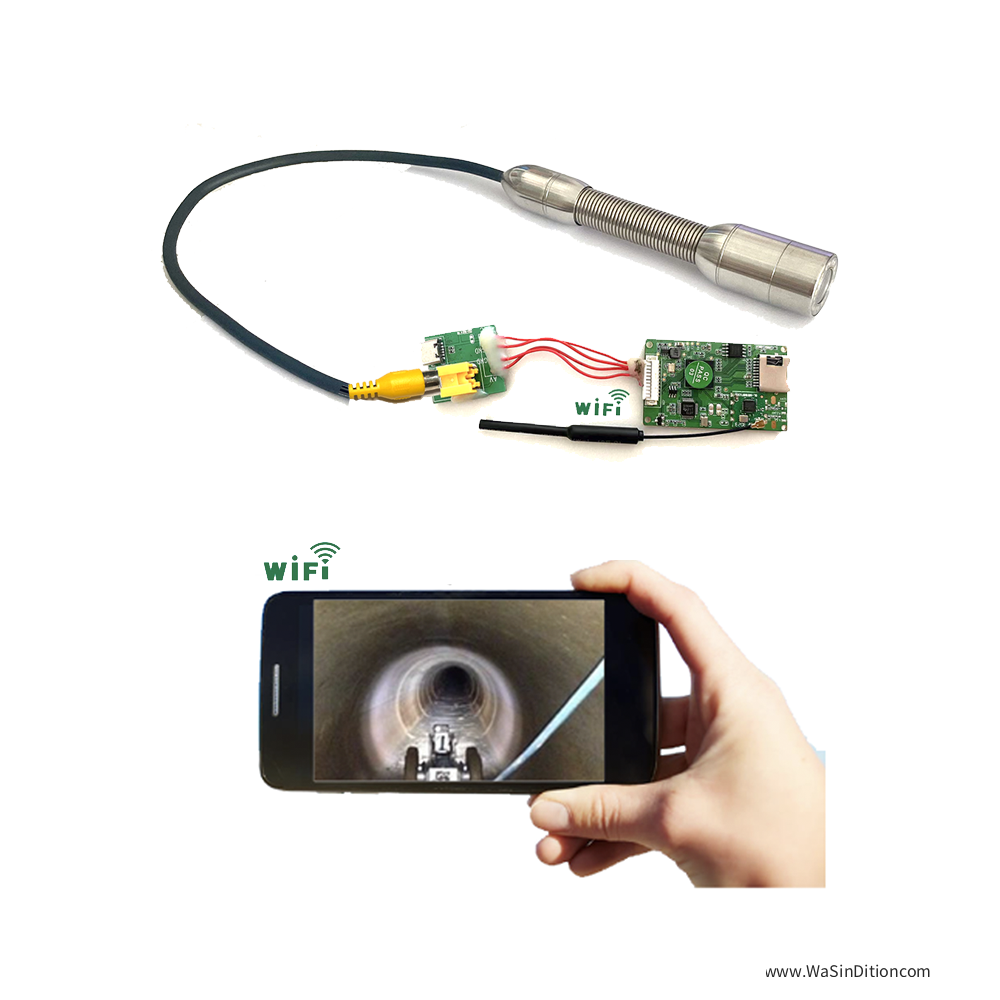

wifi wireless accessories for sewer cameras

SF1534A AHD wifi video wireless module,AHD video turn wifi to smartphone module, Wifi-Module-Video-Transmission-2.4G-wireless-video-transmitter-CVBS-to-WIFi-AV-to-WiFi,send AHD via wifi to smart phone support IOS/ android.

二、Module features：

Support IOS/ANDROID/APP

Support CVBS/ AHD / 720P/1080P 25 frame resolution

Support transparent serial port transmission, mobile phone control device

Low latency≤ 200mS

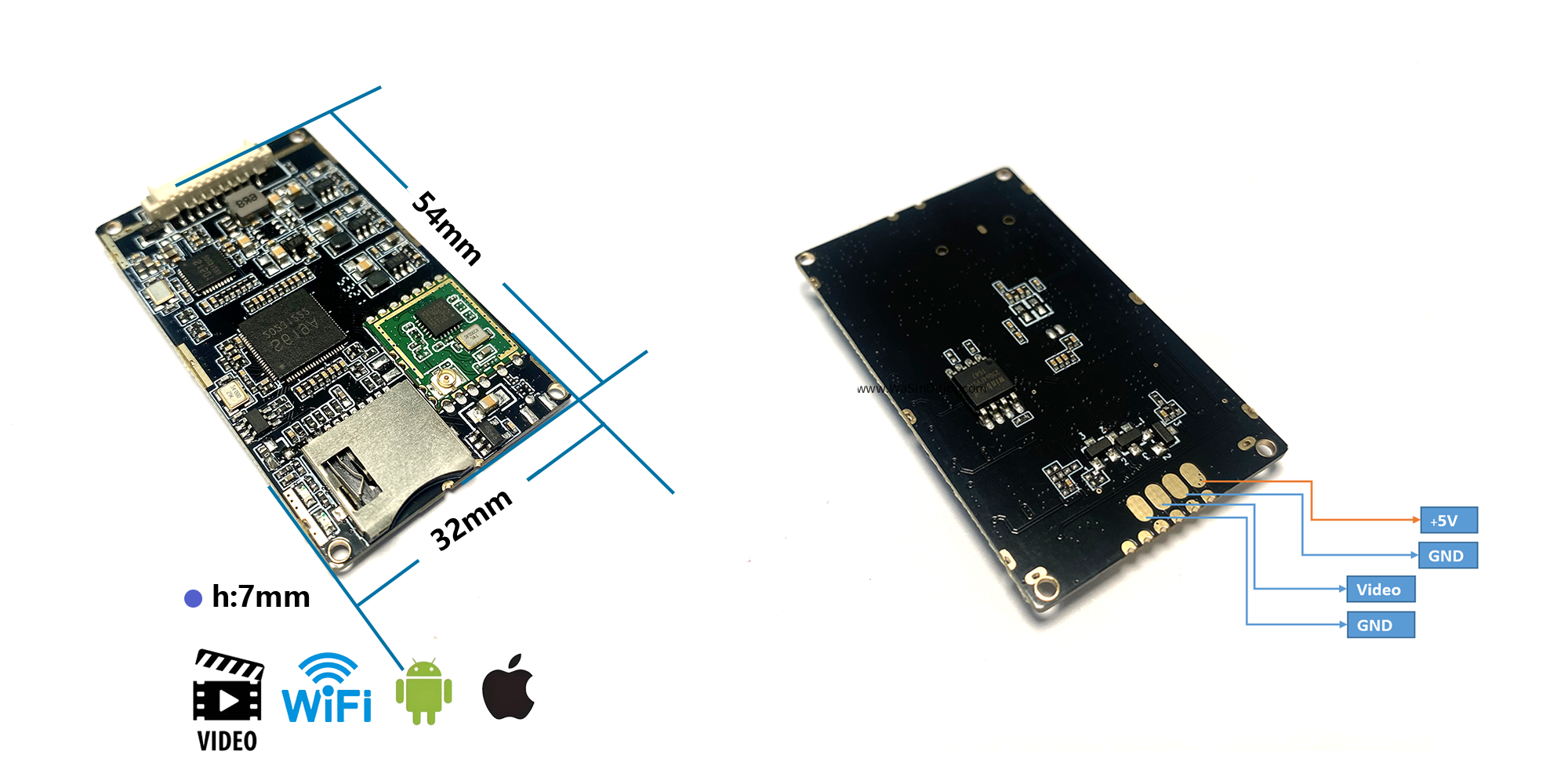

Small size: 54mmx32mmx7mm

Communication distance≥ 50m (open area)

Support CVBS & AHD analog high-definition image signal input

三、Introduction

SF1534A AHD/CVBS/AVI/RCA/S-video WIFI module: is a WIFI video wireless transmission module based on the global open 2.4G ISM frequency band launched by Wasindition.

Standard AHD signal input, support 1080P resolution, through processing and sent to the mobile client through WIFI display, support IOS or Android system mobile phones and tablets.

It adopts the mature wireless standard 802.11B/G/N, which has strong anti-interference, large bandwidth and strong device compatibility. With IOS or Android platform client software, you can send and receive control commands to the module on the mobile device. For rich control interfaces: UART, PWM, GPIO and other interfaces, which can communicate with their external devices in a variety of ways. The module's small size makes it easy to implant into the main application system.

四、Electrical parameters
