一、Application scenarios：

       The 1534C CVBS WIFI image transmission module is widely used in traditional 2.4G analog camera video converted to network, remote control sports cameras, traditional analog TV WiFi, WiFi visual reversing, visual industrial endoscope, and wireless medical inspection fields.

Endoscope/Industrial endoscopes/Visual fish finder

二、Module features：

Support IOS/ANDROID/PC APP and software

Support CVBS frame resolution

Support transparent serial port transmission, mobile phone control device

Low latency≤ 200mS

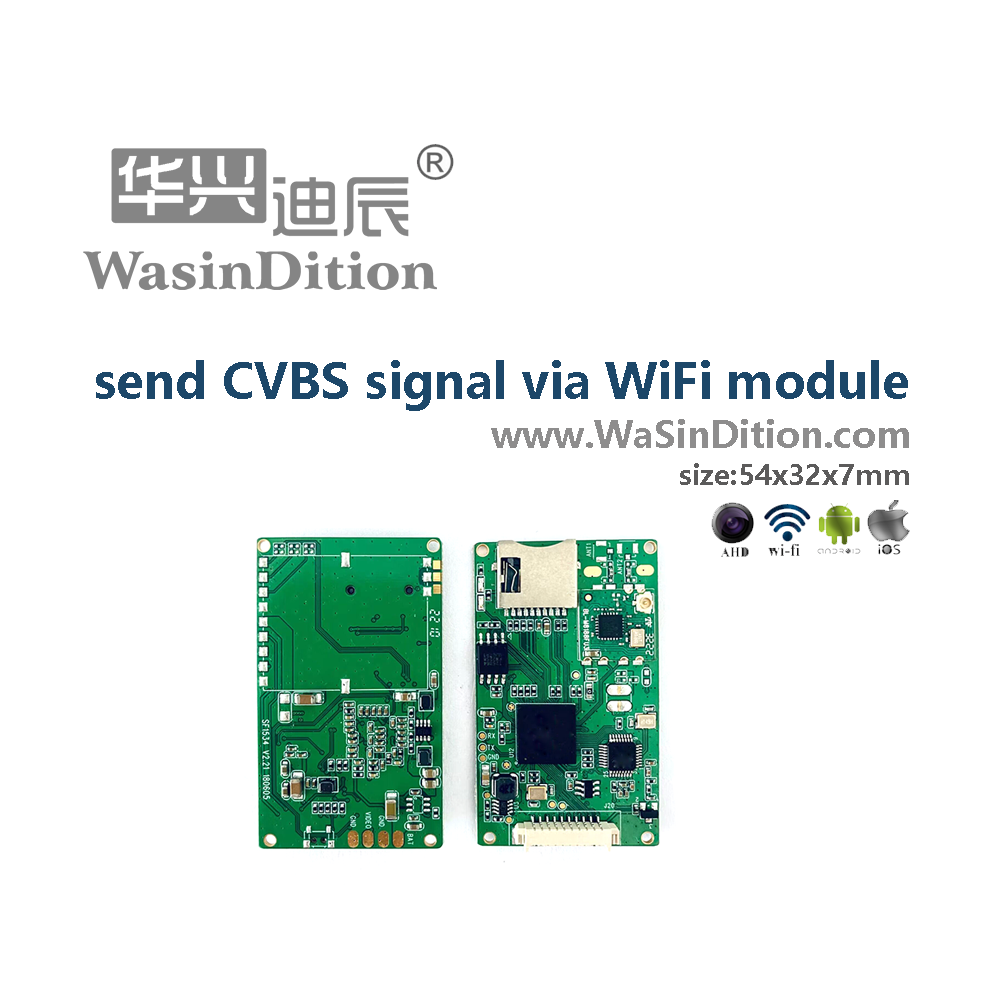

Small size: 54mmx32mmx7mm

Communication distance≥ 50m (open area)

Support CVBS analog high-definition image signal input

三、Introduction

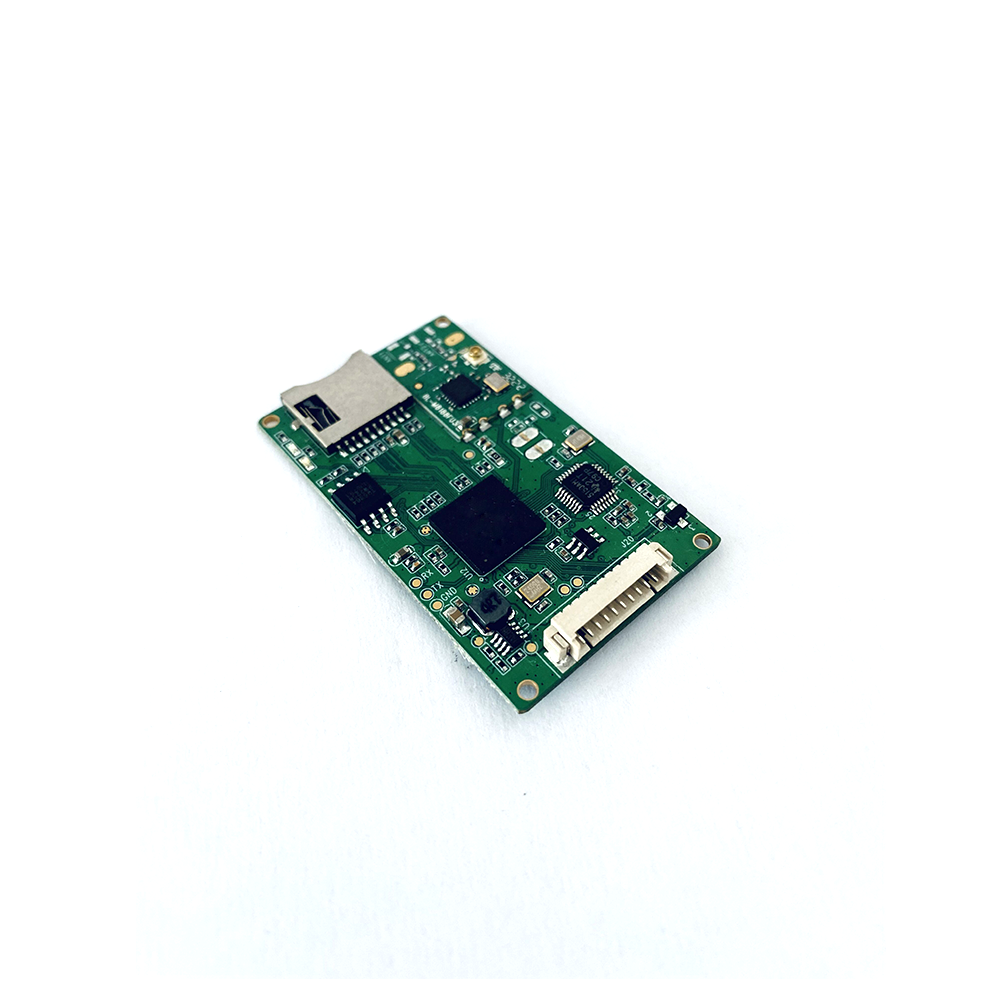

1534C-CVBS image wireless transmission module: is a WIFI video wireless transmission module based on the global open 2.4G ISM frequency band launched by Wasinditon.

Standard CVBS signal input, support CVBS resolution, through processing and sent to the mobile client through WIFI display, support IOS or Android system mobile phones and tablets.

It adopts the mature wireless standard 802.11B/G/N, which has strong anti-interference, large bandwidth and strong device compatibility. With IOS or Android platform client software, you can send and receive control commands to the module on the mobile device. For rich control interfaces: UART, PWM, GPIO and other interfaces, which can communicate with their external devices in a variety of ways. The module's small size makes it easy to implant into the main application system.

四、Electrical parameters
